Delayed LED

This is a simple demo circuit that will turn on the LED only after a small delay. The delay is decided by the resistor and capacitor. The higher the value, the longer the delay.

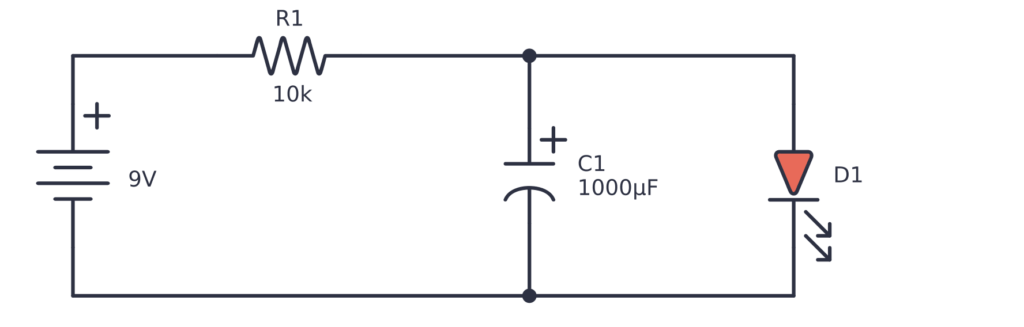

The Circuit

Parts List

Reference Value
Battery 9V
C1 1000µF
D1 Light-Emitting Diode (LED)
R1 10k

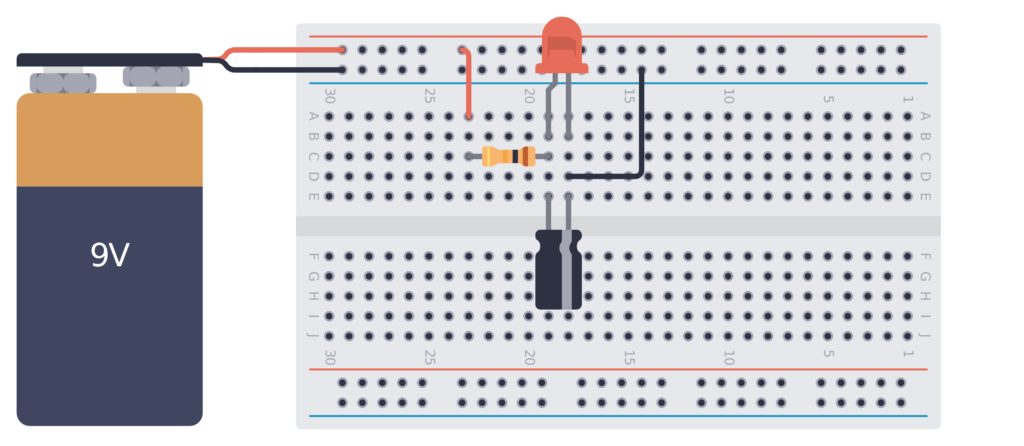

The Layout
