This is a simple circuit for blinking an LED using a relay and a capacitor.

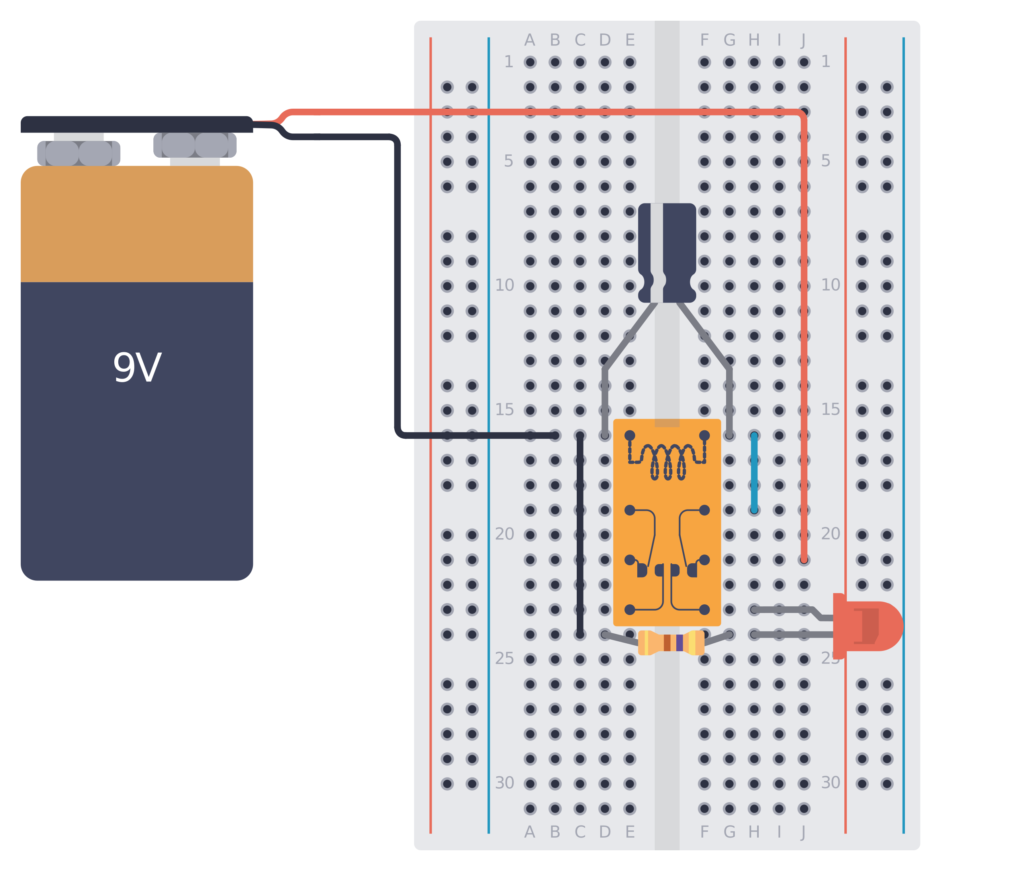

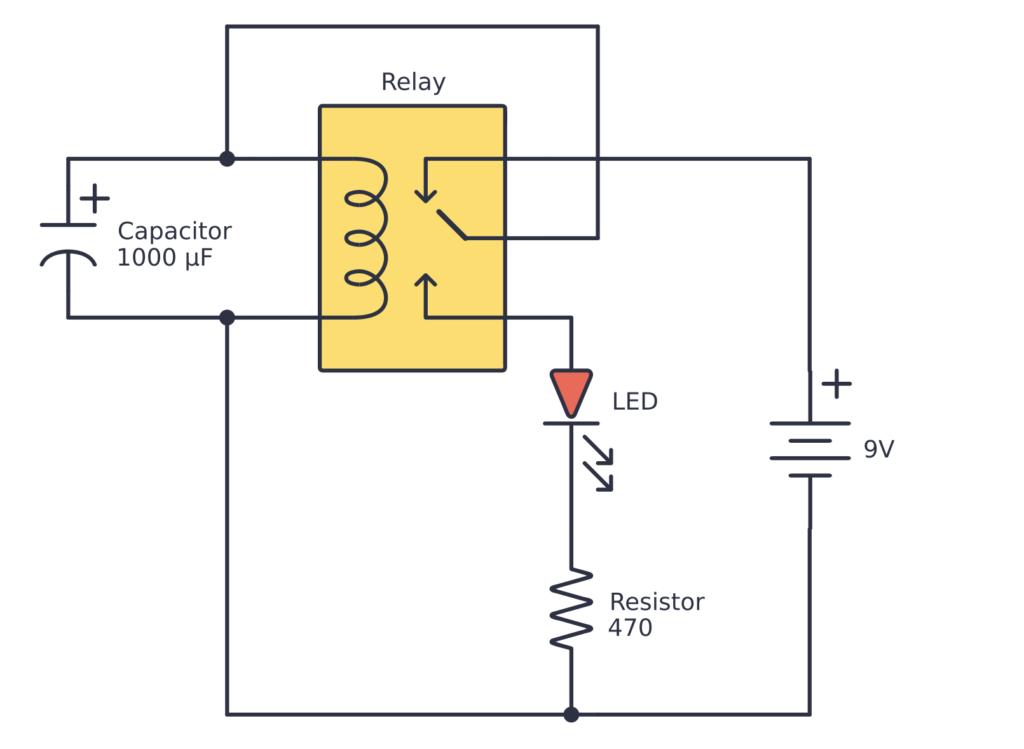

The Circuit
Parts List
| Reference | Value |
|---|---|
| Battery | 9V |
| Capacitor | 1000 µF |
| LED | Light-emitting Diode |
| Relay | DigiKey # 2449-J104D2C9VDC.20S-ND |
| Resistor | 470 |
