This is a simple demo circuit to test the colors of an RGB LED. By pressing different buttons you can mix and match different colors.

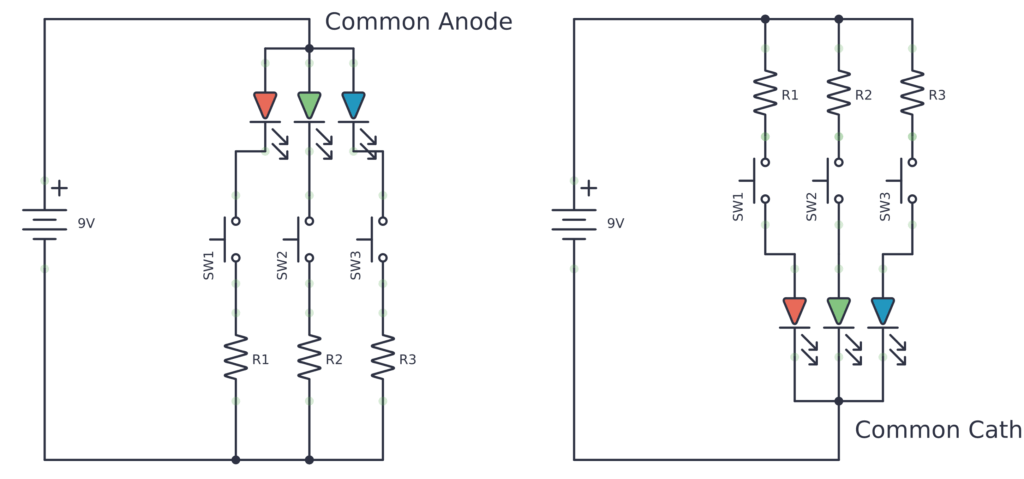

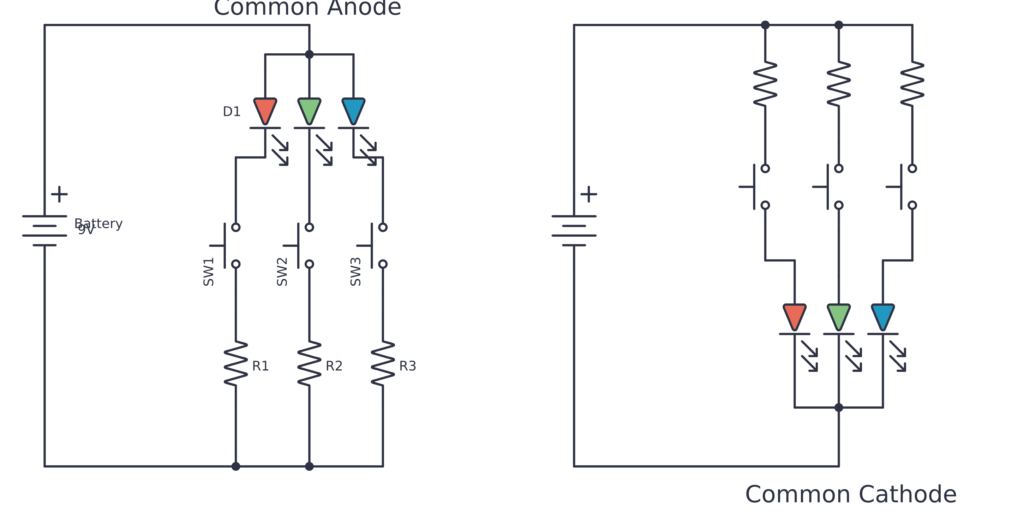

The Circuit
Parts List
| Reference | Value |
|---|---|
| Battery | 9V |
| D1 | RGB LED |
| R1 | 470 |
| R2 | 470 |
| R3 | 470 |
| SW1 | Pushbutton |
| SW2 | Pushbutton |
| SW3 | Pushbutton |

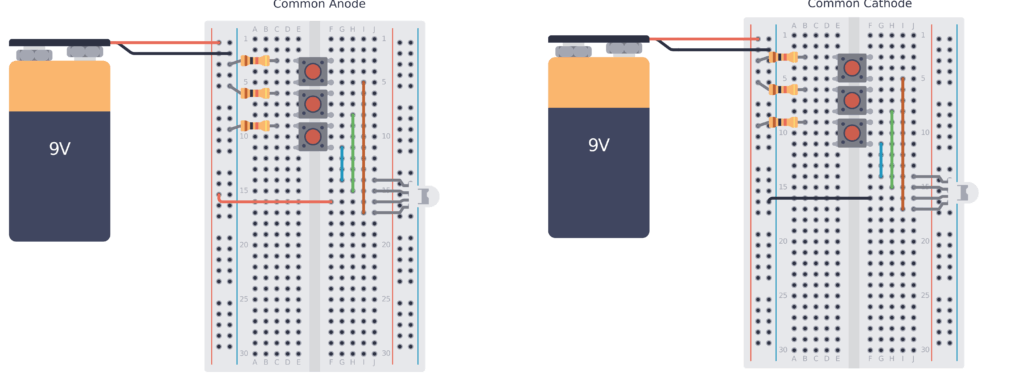

The Layout
