Temperature and Humidity Sensor with Display

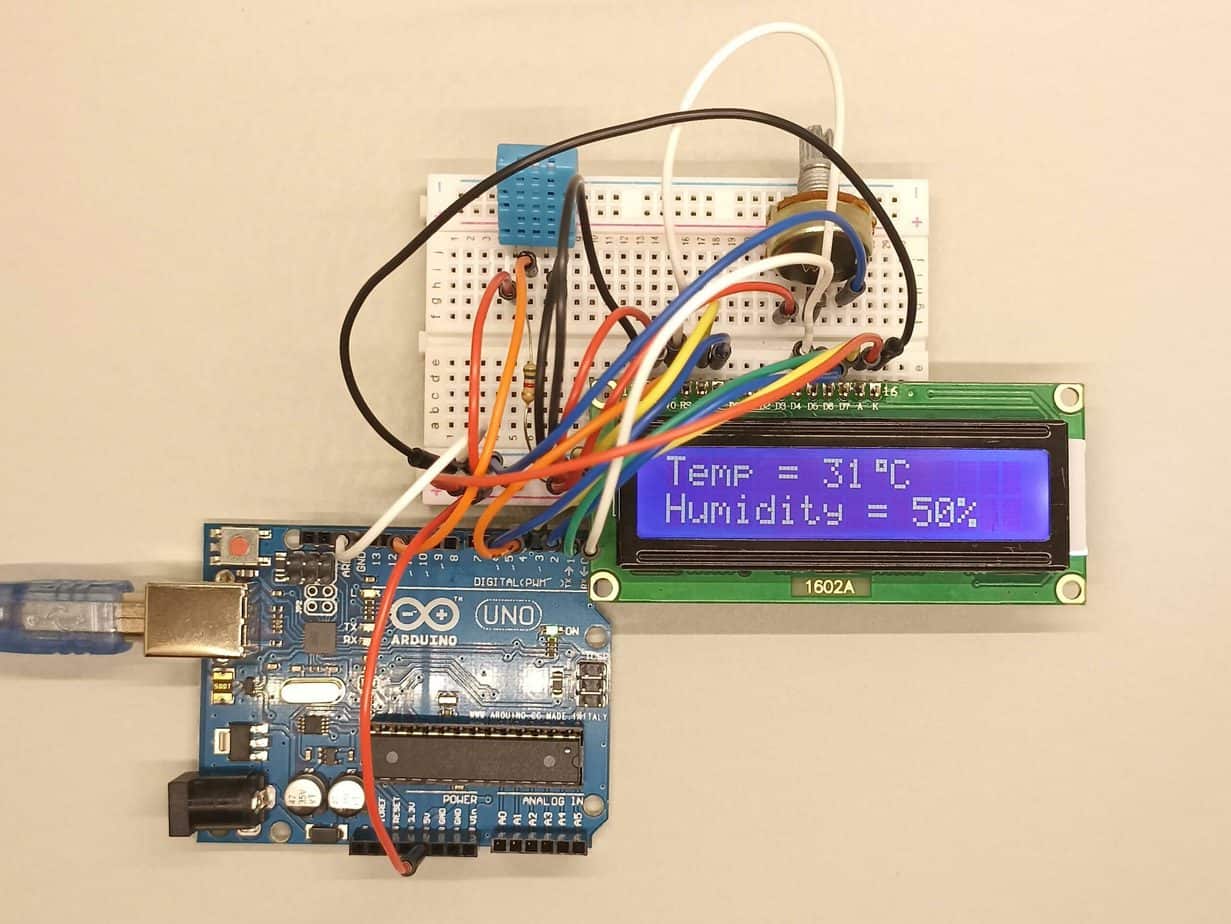

In this project, you will connect to a Temperature and Humidity Sensor (DHT11) and display the results on a 16x2 character Liquid Crystal Display (LCD).

The DHT11 is a widely used temperature and humidity sensor with a dedicated NTC for temperature measurement and an 8-bit microprocessor for serial data output of temperature and humidity measurements.

The 16x02 LCD is a very common display that is available from most electronics shops.
